Lexmark Radiators Private Limited is a specialized engineering company engaged in manufacturing Pressed Steel Radiators for power and distribution transformers since 1993.
Lexmark Radiators Private Limited is a specialized engineering company engaged in manufacturing Pressed Steel Radiators for power and distribution transformers since 1993.
Our Radiators are manufactured in accordance with IEEMA standards and are suitable for transformer ratings up to 500 MVA. Being an ISO 9001:2015 certified company, we ensure high-quality manufacturing, precision engineering, and reliable performance across all products.
We provide both standard and customized radiator solutions to meet specific industrial requirements.

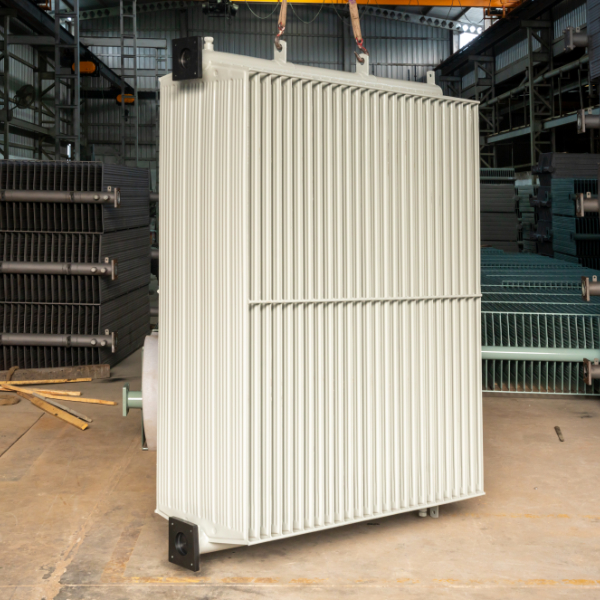

We manufacture a comprehensive range of pressed steel Radiators designed for efficient heat dissipation and long operational life.
Provides secure mounting and stable connection for industrial transformer systems.
Suitable for applications requiring special pipe routing and design flexibility.
Designed for flexible installation and easy integration into transformer systems.
Designed for installations where alignment constraints require offset configuration.
Fins are made of 1.00mm, 1.20mm & 1.60mm Thickness CRCA sheet of “D” grade (CR2) as per IS-513. Fins are of following width.
Centre distance between top and bottom header pipes (CC) shall be minimum 500 mm to 4000 mm in steps of 50/100 mm with following tolerances:
Mild Steal Header pipe made of 2.3 – 3.15 mm thick of following Outer Diameter.
Type “SF” Radiators shall be provided with two numbers of 150 mm square flanges having 4 nos. 20 mm diameter holes on 160mm PCD. Thickness of flanges shall be 12 mm, 16 mm, 18 mm and 20mm depending upon center distance and number of fins.
Four or more fins can be provided with pitch between adjacent fins of 40mm, 45mm, 50mm, 55mm, 60mm or 75mm measure at Header pipes.
We manufacture custom-designed Radiators to meet specific application requirements, including:
We also provide customized specifications based on project requirements.
Established in the year 1993, We “Lexmark Radiators Private Limited” have been engaged in manufacturing and supplying a comprehensive range of power and distribution transformer Radiators up to 500 MVA rating.
